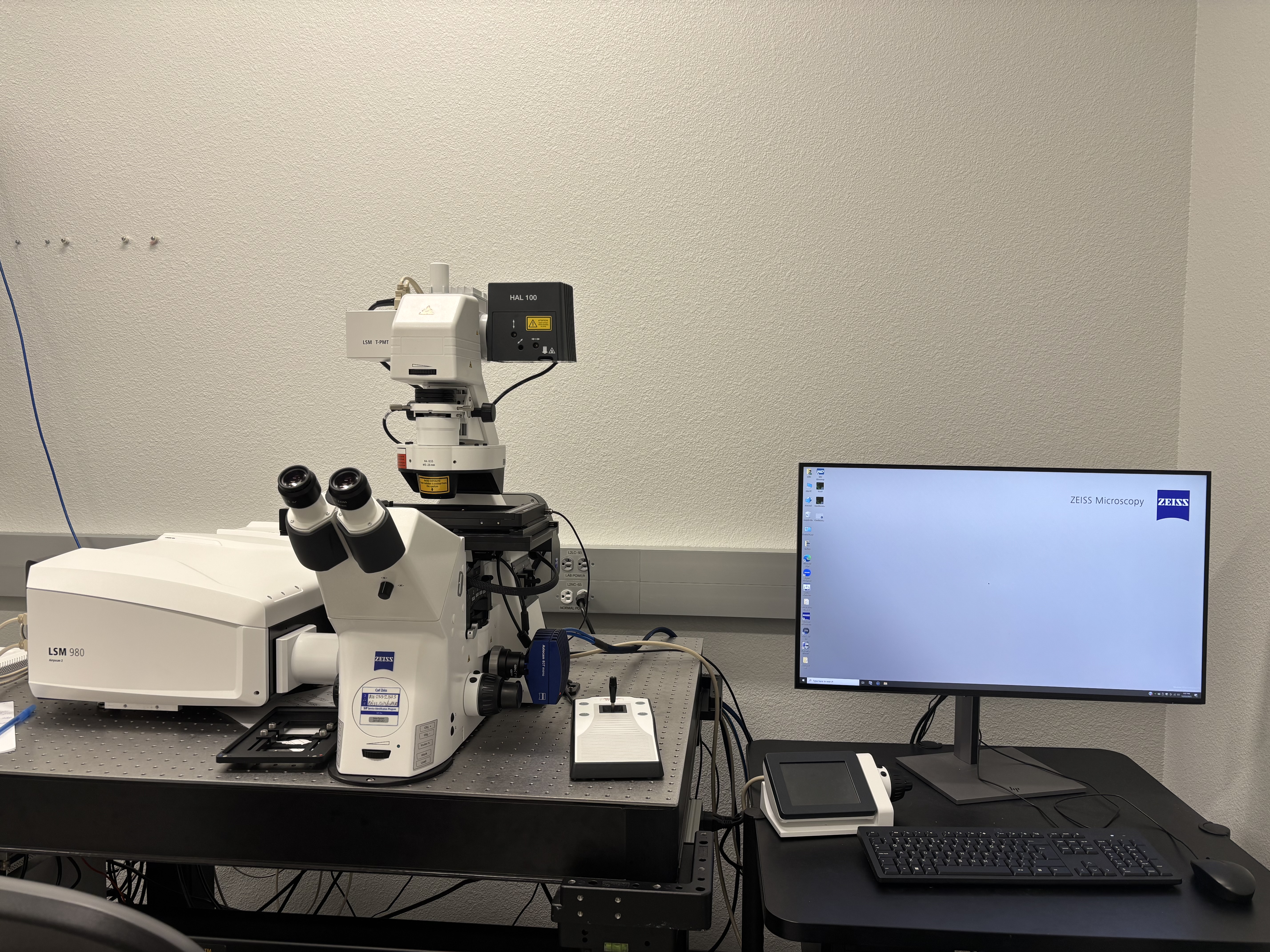

ZEISS LSM 980 Confocal Microscope with Airyscan 2

Location: PAIS 2409

Equipment List

Microscope Stand

• ZEISS Axio Observer 7, inverted.

• Definite Focus 3 (hardware autofocus / drift correction).

• Motorized XY stage.

• High-speed Piezo-Z.

Objectives

Lasers

• 405 nm, Violet.

• 445 nm, Blue.

• 488 nm, Cyan.

• 514 nm, Green.

• 561 nm, Yellow-Green.

• 639 nm, Red.

LED Widefield Illumination (Colibri S/7)

• UV, 385 nm.

• B, 475 nm.

• Y, 555 nm.

• G, Green.

• R, 590 nm.

Detectors

• Airyscan 2, 32-element GaAsP array, Super-resolution / MPLX.

• Ch1, Multi-Alkali PMT, Standard confocal.

• Ch2, GaAsP PMT, High-sensitivity.

• Ch3, Multi-Alkali PMT, Standard confocal.

• T-PMT, Multi-Alkali PMT, DIC / Brightfield.

Software

• ZEN 3.9 (Blue edition).

Contact

For training or usage of the system, contact:

• Keith Lidke, Director — klidke@unm.edu

• Chitra Shaji, Manager — shajic1989@unm.edu
